VERTEX HV-10 10 Horizontal / Vertical Rotary Table with Face Plate (6 Slots)
VERTEX HV-10 10 Horizontal / Vertical Rotary Table with Face Plate (6 Slots). Our Tables are made of high density Meehanite and use “HEIDENHAIN” electronic equipment to inspect angle to assure the excellent quality and durableness. Use excellent machining center to process. Spindle end be applied accuracy bearing. Can be assured to keep very steady under load cutting. Worm is hardened and ground. The ratio is 90:1. The work table is graduated a full 360° so that one turn of the handle moves the table through 4°. Micro collar is graduated in steps of 1’min. And vernier scale makes settings down to 10 seconds possible. These Rotary Tables are popular for their excellent performance, practical design and reasonable cost. They are widely used for circular cutting work, angle setting, boring, spot-facing and similar work. Using the Key guide block, the center can be corrected quickly and accurately. If You have any questions regarding this item, please let us know we’ll be happy to help.
VERTEX HV-6 (4-Slot) 6 Horizontal/Vertical Rotary Table with 4-Slot Face Plate
VERTEX HV-6 (4-Slot) 6 Horizontal/Vertical Rotary Table with 4-Slot Face Plate. Vertex HV-6 Horizontal/Vertical Rotary Table Special order with 4-slot face plate. Our Tables are made of high density Meehanite and use “HEIDENHAIN” electronic equipment to inspect angle to assure the excellent quality and durableness. Use excellent machining center to process. Spindle end be applied accuracy bearing. Can be assured to keep very steady under load cutting. Worm is hardened and ground. The ratio is 90:1. The work table is graduated a full 360° so that one turn of the handle moves the table through 4°. Micro collar is graduated in steps of 2’min. And vernier scale makes settings down to 10 seconds possible. These Rotary Tables are popular for their excellent performance, practical design and reasonable cost. They are widely used for circular cutting work, angle setting, boring, spot-facing and similar work. Using the Key guide block, the center can be corrected quickly and accurately. If You have any questions regarding this item, please let us know we’ll be happy to help.
Vertex 14 Horizontal/vertical Rotary Table (3900-2334)
AIR, POWER & HAND TOOLS. CUTTING & CARBIDE TOOLS. MRO & SHOP SUPPLIES. Thank you for shopping with us! Vertex 14 Horizontal/Vertical Rotary Table Made in Taiwan – High Quality & Exceptional Value: Precision manufacturing delivers consistent accuracy and durability comparable to premium brands at a more competitive price. Horizontal & Vertical Operation – Use flat or upright for maximum versatility in milling, drilling, slotting, and circular machining applications. Precision Worm Gear Drive (90:1 Ratio) – Smooth, controlled rotation for accurate indexing and dependable repeatability. Fine Graduation Collar – One full handle turn equals 4°, allowing precise angular adjustments. Vernier Reading Scale – Easy-to-read graduations provide accurate positioning down to 10 seconds. Large T-Slotted Table Surface – Securely mounts fixtures, vises, chucks, clamps, and custom tooling. Heavy-Duty Cast Iron Construction – Rigid body minimizes vibration and maintains accuracy under load. Machined Table Face with Center Bore – Ideal for locating workpieces, centers, mandrels, and rotary fixtures. Center hole is 4MT. T-Slot size is 0.62. Horizontal load capacity is 286 lbs. Vertical load capacity is 154 lbs. Some browsers do not allow this option.
Vertex 16 Horizontal/vertical Rotary Table (3900-2336)
AIR, POWER & HAND TOOLS. CUTTING & CARBIDE TOOLS. MRO & SHOP SUPPLIES. Thank you for shopping with us! Vertex 14 Horizontal/Vertical Rotary Table Made in Taiwan – High Quality & Exceptional Value: Precision manufacturing delivers consistent accuracy and durability comparable to premium brands at a more competitive price. Horizontal & Vertical Operation – Use flat or upright for maximum versatility in milling, drilling, slotting, and circular machining applications. Precision Worm Gear Drive (90:1 Ratio) – Smooth, controlled rotation for accurate indexing and dependable repeatability. Fine Graduation Collar – One full handle turn equals 4°, allowing precise angular adjustments. Vernier Reading Scale – Easy-to-read graduations provide accurate positioning down to 10 seconds. Large T-Slotted Table Surface – Securely mounts fixtures, vises, chucks, clamps, and custom tooling. Heavy-Duty Cast Iron Construction – Rigid body minimizes vibration and maintains accuracy under load. Machined Table Face with Center Bore – Ideal for locating workpieces, centers, mandrels, and rotary fixtures. Center hole is 4MT. T-Slot size is 0.62. Horizontal load capacity is 308 lbs. Vertical load capacity is 154 lbs. Some browsers do not allow this option.
Vertex 12 Horizontal/vertical Rotary Table (3900-2332)
AIR, POWER & HAND TOOLS. CUTTING & CARBIDE TOOLS. MRO & SHOP SUPPLIES. Thank you for shopping with us! 10 Horizontal/Vertical Rotary Table – Vertex # HV-12 Vertex High Precision Taiwanese Rotary Tables are known for their accuracy, which is achieved through careful manufacturing processes and precision grinding of the table surface. These tables are made from high-quality, high density Meehanite cast iron. They are very versatile and can be used for a wide range of machining operations – from milling, drilling, boring and grinding. Use these tables with front mount chucks. Overall Horizontal Height: 5.3″ Overall Vertical Height: 15.3″ Center Hole: 4MT Vertical Center Height: 7.7 6 T-Slots T-Slot Size. 63 Weight is 134 lbs. 10 second vernier reading. Gear ratio 90:1. One rotation of handle equals 4° on collar. Horizontal load capacity is 264 lbs. Vertical load capacity is 132 lbs. Some browsers do not allow this option.
Vertex 12 Horizontal/vertical Rotary Table (3900-2332)
AIR, POWER & HAND TOOLS. CUTTING & CARBIDE TOOLS. MRO & SHOP SUPPLIES. Thank you for shopping with us! 10 Horizontal/Vertical Rotary Table – Vertex # HV-12 Vertex High Precision Taiwanese Rotary Tables are known for their accuracy, which is achieved through careful manufacturing processes and precision grinding of the table surface. These tables are made from high-quality, high density Meehanite cast iron. They are very versatile and can be used for a wide range of machining operations – from milling, drilling, boring and grinding. Use these tables with front mount chucks. Overall Horizontal Height: 5.3″ Overall Vertical Height: 15.3″ Center Hole: 4MT Vertical Center Height: 7.7 6 T-Slots T-Slot Size. 63 Weight is 134 lbs. 10 second vernier reading. Gear ratio 90:1. One rotation of handle equals 4° on collar. Horizontal load capacity is 264 lbs. Vertical load capacity is 132 lbs. Some browsers do not allow this option.

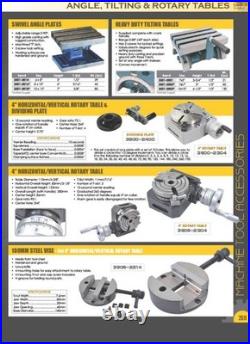

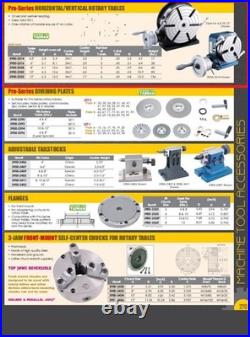

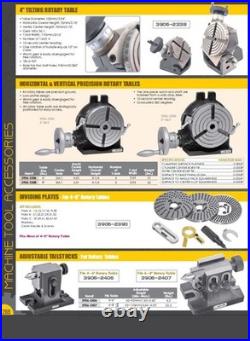

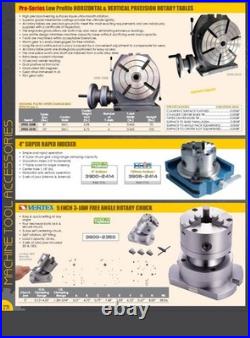

Vertex 3900-2314 Horizontal/Vertical Rotary Table, 4
Vertex High Precision Taiwanese Rotary Tables are known for their accuracy, which is achieved through careful manufacturing processes and precision grinding of the table surface. These tables are made from high-quality, high density Meehanite cast iron. They are very versatile and can be used for a wide range of machining operations – from milling, drilling, boring and grinding. Use these tables with front mount chucks. One rotation of handle equals 4° on collar. 10 second vernier reading with a gear ratio of 90 to 1. Overall Horizontal Height is 2.8″ Overall Vertical Height is 5.7″. Center Hole is 2MT Vertical Center Height is 3.3 3 T-Slots T-Slot Size is. Any product you return must be in the same condition you received it and in the original packaging. Please keep the receipt. Please pay as soon as possible, as that will allow us to post your item to you sooner! We usually respond within 24 hours on weekdays. Thank you for shopping at our store.
Vertex 3900-2314 Horizontal/Vertical Rotary Table, 4
This is an OpenBoxed Item. Our Opened Box items are in great condition. Typically the item is 100% brand new in a replaced box. All our items are 100% guaranteed! Vertex High Precision Taiwanese Rotary Tables are known for their accuracy, which is achieved through careful manufacturing processes and precision grinding of the table surface. These tables are made from high-quality, high density Meehanite cast iron. They are very versatile and can be used for a wide range of machining operations – from milling, drilling, boring and grinding. Use these tables with front mount chucks. One rotation of handle equals 4° on collar. 10 second vernier reading with a gear ratio of 90 to 1. Overall Horizontal Height is 2.8″ Overall Vertical Height is 5.7″. Center Hole is 2MT Vertical Center Height is 3.3 3 T-Slots T-Slot Size is.
Vertex 6 Horizontal/vertical Rotary Table Made In Taiwan (3900-2316)
AIR, POWER & HAND TOOLS. CUTTING & CARBIDE TOOLS. MRO & SHOP SUPPLIES. Thank you for shopping with us! 6 Horizontal/Vertical Rotary Table Vertex High Precision Taiwanese Rotary Tables are known for their accuracy, which is achieved through careful manufacturing processes and precision grinding of the table surface. These tables are made from high-quality, high density Meehanite cast iron. They are very versatile and can be used for a wide range of machining operations – from milling, drilling, boring and grinding. Use these tables with front mount chucks. Overall Horizontal Height: 3.1″ Overall Vertical Height: 7.8″ Center Hole: 2MT Vertical Center Height: 3.9 3 T-Slots T-Slot Size. 10 second vernier reading. Gear ratio 90:1. One rotation of handle equals 4° on collar. Horizontal load capacity is 88 lbs. Vertical load capacity is 44 lbs. Some browsers do not allow this option.
