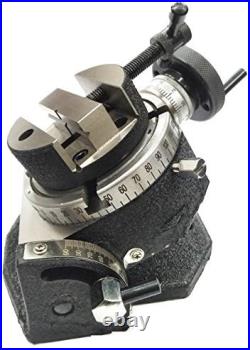

HV 4 (100 mm) Tilting Milling Indexing Horizontal Vertical Rotary Table with
Use of product – A rotary table is a precision work positioning device used in metalworking. It enables the operator to drill or cut work at exact intervals around a fixed (usually horizontal or vertical) axis. A round vise is used for securely holding round or cylindrical workpieces during machining, drilling, grinding, or inspection processes. Its design allows for stable and precise positioning, facilitating accurate and consistent operations on the workpiece. 4 (100 mm) Rotary Table. 360-Degree Graduation: The table is graduated a full 360 degrees, allowing for precise control and positioning of the workpiece. The clear markings ensure easy and accurate angle setting for all your milling tasks. Worm Gear Ratio: 1:36 The gear ratio means that one full rotation of the handle turns the table by 10 degrees, providing fine control over the movement and ensuring precision in every operation. Vertical Position Center Height: 2-1/16 (50 mm approx) The center height in the vertical position is 2-1/16 inches, which aligns perfectly with the smaller milling machine setups, offering versatility in workpiece positioning. Handwheel Graduations: The handwheel is graduated in divisions of 10 minutes, allowing for highly detailed adjustments. The scale can also be set to zero, making it easy to track and repeat your adjustments for consistent results. Mounting Flexibility: The Regular model can be mounted in both horizontal and vertical positions, enhancing its versatility for a wide range of applications. Whether you need flat or angled cuts, this rotary table can handle it with ease. Made form Quality close grain Caste Iron -Designed to fit our 3″ (75 mm) & 4″(100 mm) Rotary Tables. Diameter of Base : 80 mm Jaw Width : 54 mm Jaw Depth: 20 mm Jaw Opening : 32 mm Height : 29 mm. These vices are counter- drilled in a manner that these can fit to a 3 as well 4 slot table. The moving jaw has V-grooves to hold Round objects. Precisely Ground on Base, Top, Jaws & Base. Rest Body is painted for a long rust free life. 100 mm Diameter Caste Iron Round Vise vice -Made from Close grain Caste Iron. Designed to fit our 4 (100 mm) Regular & tilting models of Rotary Table. Vice is counter drilled in a manner that it can fit to both 3 as well as 4 Slots Rotary Table. Diameter of Base : 105 mm Jaw Width : 75 mm Jaw Depth: 21 mm Jaw Opening : 40 mm Height : 32 mm.
Rotary Table for Milling Machines, 4”/ 100 mm, Horizontal Vertical Model
4-Inch Rotary Table for Milling Machine. Our 4”/100 mm diameter rotary table is the perfect companion for small milling machines or specialized machinery and is designed for intricate and complex dividing cuts. Embrace the efficiency and versatility of our 4-inch rotary table and take your milling projects to the next level of accuracy. Our rotary table comes with a 3-jaw chuck and requires additional installation! We offer two types of jaws, internal jaw and external jaw, which easily open and close with a T-shaped chuck wrench, ensuring a secure and precise grip on your workpieces. Enjoy the precise machining with our meticulously designed milling rotary table featuring a worm gear ratio of 1:36 and a fine, clear scale. Every rotation is under your control, with a dedicated degree lock. Once you set your angle, it stays put, ensuring stability and consistency in your work. Discover unparalleled versatility with our milling machine rotary table, ingeniously designed for both horizontal and vertical applications. The precise positioning slot on the bottom ensures the rotary table remains stable and shake-free during operation. Our rotary table is crafted from HT250 cast iron for exceptional wear resistance and high hardness and is a staple in precision and heavy-duty machining industries. Choose our rotary table for a lasting addition to your workshop, where strength meets precision at every turn.
3′ HV-3 Vertical and Horizontal Rotary Table/75mm Milling/Drilling Table
Horizontal indexing disc milling machine rotary table divider indexing head vertical dual-use manual simple turntable. CNC or Not : Normal. Product name : Rotary table of milling machine. Name: milling machine rotary table.
Rotary Table 4 Inch/100 mm Horizontal Vertical For Milling Premium Quality
Rotary Table 4 100mm Horizontal Vertical Model Milling Machine 4 Slots. The Metal : High quality 18 Gauge Mild Iron steel with Brass Accents. THIS NEAT LITTLE ROTARY TABLE, WITH A DIAMETER OF 100MM, CAN BE USED FOR A VARIETY OF MILLING, DRILLING AND MARKING OUT OPERATIONS IN THE HOME ENGINEER’S WORKSHOP. THERE ARE FOUR TEE SLOTS FOR SECURING THE WORK, FACES MACHINED AT RIGHT ANGLES FOR HORIZONTAL AND VERTICAL MOUNTING AND 7MM SLOTS FOR SECURING TO THE MACHINE TABLE. THE INDEXING HANDLE, WHICH ROTATES ONCE FOR EVERY TEN DEGREES OF TABLE ROTATION, IS SUBDIVIDED IN DEGREES AND QUARTER DEGREES. THE CENTRE HEIGHT WHEN MOUNTED VERTICALLY IS 40MM. SUPPLIED WITH WORK CLAMPING KIT. VERTICAL AND HORIZONTAL MOUNTING TEE SLOTS FOR SECURING WORK WHEEL MARKED IN DEGREES AND QUARTER DEGREES. A Precision work positioning device used in metalworking, enabling the operator to drill or cut work at exact intervals around a fixed axis. Rotary tables are most commonly mounted “flat”, with the table rotating around a vertical axis, in the same plane as the cutter of a vertical milling machine. An alternate setup is to mount the rotary table on its end (or mount it “flat” on a 90° angle plate), so that it rotates about a horizontal axis. In this configuration a tailstock can also be used, thus holding the work piece between centers. Horizontal/Vertical Rotary Tables are extremely useful accessories for a milling machine. Milling curved profiles and angled faces relative to a centre line. Drilling or milling to polar co-ordinates and, when mounted vertically with a tailstock they can be used to machine shafts or spindles. The versatile units can also be used on drilling, boring or slotting machines permitting an even greater range of operations. Machining – To establish the initial work piece position simply loosen the zero Collar locking handle and rotate the zero collar anti-clockwise for about half A turn. The worm is now disconnected from the worm wheel drive, the table is Free to turn independently to the crank handle and the work piece may now be Accurately aligned. To re-engage simply turn the zero collar in the clockwise Direction and re-tighten the locking handle. To machine spanner flats on a bolt. To drill equidistant holes on a circular flange. To cut a round piece with a protruding tang. To create large-diameter holes, via milling in a circular tool path, on small milling machines that don’t have the power to drive large twist drills (>0.500/>13 mm). To cut complex curves (with proper setup). To cut straight lines at any angle. The holiday season is the busiest shopping period of the year, don? Our catalog covers every festival including Thanksgiving, Black Friday, Cyber Monday, Christmas. Please do visit our store and get yourself a treat.
Rotary Table Boring Accurate Positioning Indexing Disc Horizontal Vertical
Rotary Table Boring Accurate Positioning Indexing Disc Horizontal Vertical. Versatile Functionality? : The rotary table is designed for both horizontal and vertical use, making it an essential accessory for milling machines. It is great for indexing drilling, milling, circular cutting, and countersinking tasks? Construction? : Crafted from quality iron material, this rotary table for milling ensures long time durability and reliable performance in various machining applications? Compact Dimensions? : This milling table is compact yet efficient, fitting seamlessly into your workspace without compromising on functionality? Package? : The package includes what you need to get started – the machine itself, four T shaped nuts, 1 pressure plate screw, 1 handle crank, and 2 positioning keys? Essential Milling Accessory? : Enhance your milling machine’s capabilities with this indispensable tool that supports a wide range of machining operations with precision and ease. Style A: 7.8cmx9.8cm/3.07inchx3.86inch, Disc diameter 7.5cm/2.95inch Style B: 11.4cmx14.5cm/4.49inchx5.71inch, Disc diameter 11cm/4.33inch, Middle hole 1.6cm/0.63inch. 1 Rotary Table 4 T nuts 1 Pressure plate screw 1 Crank 2 Positioning keys. Please pay what you win in 7 days. Because the unpaid dispute will not be closed automatically, and we may ignore it. Please verify your address during checkout. We are not responsible for any wrong or undeliverable addresses. We are committed to give you the best customer service possible. Please let us work on the issues. We’d like to settle any problem in a friendly manner. Due to the difference of time zone between Hong Kong and your location, sometimes the answer will be delayed. It’s just take you 1 minute. People always bought together with.
Milling Indexing 4/100 Rotary Table Quality Precision Horizontal Vertical Wi

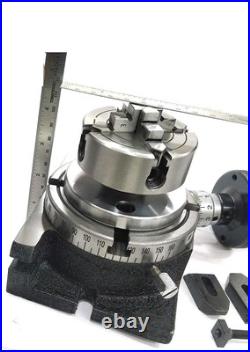

Tool Set of 4 Regular Rotary Table with a 70 mm 4 Jaws Independent Chuck with Back Plate & fixingsT nut Bolts & M6 clamp kit Chuck Body is Grain SG Caste Iron & Jaws are of Tool Steel. Jaws are Hardened & Ground. A Tool Steel Back Plate is supplied with Fixing T nuts to Mount the Chuck on It. Back Plate is Drill in a manner that it will fit both 3 as well as 4 slots Table. The Back side of the Plate has a locating Spigot to center the Mounting on to the Table. Worm Gear Ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 Degrees. It can be mounted both in Horizontal & vertical position. Hand wheel is graduated in divisions of 10 min & can be set to zero Tool Set of 4 Regular Rotary Table with a 70 mm 4 Jaws Independent Chuck with Back Plate & fixingsT nut Bolts & M6 clamp kit Chuck Body is High Grain SG Caste Iron & Jaws are of Tool Steel. Hand wheel is graduated in divisions of 10 min & can be set to zero.
Rotary Table 8 Inch 200MM Horizontal Vertical 3 Slot For Milling Tool
8/200mm Rotary Table 3-Slot Horizontal Vertical Rotary Table. The mill rotary table is one of the main accessories of milling machine. As a work positioning device, it is widely used for indexing drilling, milling, circumferential cutting, boring, etc. The rotary turn table for milling machine is made from HT200 casting with high quality. It has already passed the ISO9001 quality system certification. They are are very popular on the market for their superior performance, excellent design and reasonable cost. 8 Vertical & Horizontal Design. Vertical & Horizontal Design. Both vertical and horizontal with two functions. Circle cutting, indexing drilling, milling and more complicated work are possible when the vertical position of the table is used together with the tail part. Milling table is of good casting performance like mill vise, shock absorption performance as well as high strength heat resistance. The dial is divided into 360 degrees in total. The handle is 4 degrees per revolution. The minimum scale can be accurate to 10 seconds. Just adjust the handle to the position where you want as the precise scale is marked on the dial. Free Wrench & Screw. A wrench and screws are free for you with your installation the vertical & horizontal rotary table. Rotary table milling machines are designed for milling, drilling, fixture boring and many common workshop applications. Table Diameter: 8/200mm. Reduction ratio: 1:90. Horizontal Height : 4.13/105mm. Vertical Height : 1.57/40mm. 1 x Vertical and Horizontal Rotary Working Table. 1 x Screw Set.
Precision Milling Rotary Table 4”/ 100 mm, Horizontal Vertical with 3-Jaw Chuck
4-Inch Rotary Table for Milling Machine. Our 4”/100 mm diameter rotary table is the perfect companion for small milling machines or specialized machinery and is designed for intricate and complex dividing cuts. Embrace the efficiency and versatility of our 4-inch rotary table and take your milling projects to the next level of accuracy. Our rotary table comes with a 3-jaw chuck and requires additional installation! We offer two types of jaws, internal jaw and external jaw, which easily open and close with a T-shaped chuck wrench, ensuring a secure and precise grip on your workpieces. Enjoy the precise machining with our meticulously designed milling rotary table featuring a worm gear ratio of 1:36 and a fine, clear scale. Every rotation is under your control, with a dedicated degree lock. Once you set your angle, it stays put, ensuring stability and consistency in your work. Discover unparalleled versatility with our milling machine rotary table, ingeniously designed for both horizontal and vertical applications. The precise positioning slot on the bottom ensures the rotary table remains stable and shake-free during operation. Our rotary table is crafted from HT250 cast iron for exceptional wear resistance and high hardness and is a staple in precision and heavy-duty machining industries. Choose our rotary table for a lasting addition to your workshop, where strength meets precision at every turn. 4-Inch Milling Machine Rotary Table: Elevate your milling capabilities with our? 4” / 100 mm rotary table, which is ideal for small milling machines. It is designed for precise positioning, rotation, indexing, and clamping of wood and metal workpieces for curved surface machining, elongated hole processing, and precision drilling. Widely used in automotive, mold-making, and general machinery, underscores its essential role in mechanical processing. Secure Small Workpieces with Ease: Our rotary table comes with a 3-jaw chuck, and the serrated jaw ensures a firm grip on even the small workpieces. Chuck Diameter:? 3.1” / 80 mm. The internal jaw can be used for internal & external clamping. External Clamping Range: 0.08”- 0.98” / 2-25 mm, Internal Clamping Range: 0.98”- 2.76”/ 25-70 mm. It includes an external jaw and external clamping range of 0.87”-2.76” / 22-70 mm. Enjoy the precise and secure machining of small components! High Precision at Your Fingertips: The milling machine rotary table is operated by a handwheel, complete with crystal-clear scales on both the wheel and the table for precise measurements. The handwheel scale number is 100, while the table itself is marked with 360 degrees. With a worm gear ratio of 1:36, a single rotation of the handwheel results in a 10-degree turn of the table, aligning perfectly with intuitive operation and allowing for precise control over even the slightest rotation. Horizontal & Vertical Installation: When mounted horizontally, the chuck top height is 4.7” / 120 mm (±3 mm), and when mounted vertically, the chuck center height is 3.4” / 86 mm (±3 mm). Our rotary table fits industrial and home-use milling machines as long as your milling machine tool height is higher than vertical/horizontal installation heights. Additionally, the table’s bottom features positioning slots for easy and secure attachment to your milling machine. Exceptional Durability, Built to Last: Step up your milling game with our exceptionally durable rotary table crafted from HT250 cast iron for maximum wear resistance and a high-hardness surface that resists scratches and corrosion, ensuring an extended lifespan. Even under heavy loads, high pressure, and rapid rotation, our rotary table maintains its integrity and durability. Choose our HT250 cast iron rotary table for a high-quality performance in your milling operations.
8 Rotary Table MT3 Horizontal Vertical 3-Slot 360° for Milling Machine
Rotary Table 8 Inch/200 MM Horizontal Vertical Rotary Table 3-Slot Rotary Table for Milling Machine MT-3 Rotary Table for Milling 360 Degrees Precision Rotary Table. 8″ Vertical & Horizontal Design: Our rotary table for milling machine is 8″ / 200 mm with 3 slots can be used in both horizontal and vertical positions, meeting two functions and also bringing you convenient as well as efficient milling experience. Remarkable Quality: HT200 Casting is mainly used to cast parts subjected to pressure and vibration on mechanical equipment, offering rotary table for milling durability, shock absorption and heat-resistantance. Excellent Precision: The precision rotary table’ indexing plate can be graduated 360 Degrees. Resetting dial and hand wheel can be graduated in seconds. The minimum scale is calibrated to 10 seconds with high precision. Convenient to Adjust: The dial is marked with an accurate scale. Just operate the control handle and adjust it to the desired position, which makes it possible to use it easily and conveniently. Multiple Application: With free wrench and set of screws, the power milling machines are widely used in milling machine like index boring, milling, circle cutting, spot facing and boring hole and so on. Practical design can meet a variety of workshop work needs. Vertical & Horizontal Design HT200 Casting Excellent Precision Easy to Adjust Free Wrench & Screw Various Application Vertical Height : 1.57″/40mm, Horizontal Height : 4.13″/105mm, Material: HT200 Casting, Table Diameter: 8/200mm, Reduction ratio: 1:90, Center Bore: MT-3.
