Leica Rugby 840 Grade/rotary Laser Horizontal & vertical Laser. Parts
This Leica Rugby 840 does not seem to spin when I turn it on. The laser comes on and shoots a laser vertically and horizontally, but does not spin. If you are handy with this type of equipment, you might be able to tune it up and make it work. Includes 840 unit and the Leica case without latches. If you don’t want the yellow case, message me.
HV 4 (100 mm) Tilting Milling Indexing Horizontal Vertical Rotary Table with
Use of product – A rotary table is a precision work positioning device used in metalworking. It enables the operator to drill or cut work at exact intervals around a fixed (usually horizontal or vertical) axis. A round vise is used for securely holding round or cylindrical workpieces during machining, drilling, grinding, or inspection processes. Its design allows for stable and precise positioning, facilitating accurate and consistent operations on the workpiece. 4 (100 mm) Rotary Table. 360-Degree Graduation: The table is graduated a full 360 degrees, allowing for precise control and positioning of the workpiece. The clear markings ensure easy and accurate angle setting for all your milling tasks. Worm Gear Ratio: 1:36 The gear ratio means that one full rotation of the handle turns the table by 10 degrees, providing fine control over the movement and ensuring precision in every operation. Vertical Position Center Height: 2-1/16 (50 mm approx) The center height in the vertical position is 2-1/16 inches, which aligns perfectly with the smaller milling machine setups, offering versatility in workpiece positioning. Handwheel Graduations: The handwheel is graduated in divisions of 10 minutes, allowing for highly detailed adjustments. The scale can also be set to zero, making it easy to track and repeat your adjustments for consistent results. Mounting Flexibility: The Regular model can be mounted in both horizontal and vertical positions, enhancing its versatility for a wide range of applications. Whether you need flat or angled cuts, this rotary table can handle it with ease. Made form Quality close grain Caste Iron -Designed to fit our 3″ (75 mm) & 4″(100 mm) Rotary Tables. Diameter of Base : 80 mm Jaw Width : 54 mm Jaw Depth: 20 mm Jaw Opening : 32 mm Height : 29 mm. These vices are counter- drilled in a manner that these can fit to a 3 as well 4 slot table. The moving jaw has V-grooves to hold Round objects. Precisely Ground on Base, Top, Jaws & Base. Rest Body is painted for a long rust free life. 100 mm Diameter Caste Iron Round Vise vice -Made from Close grain Caste Iron. Designed to fit our 4 (100 mm) Regular & tilting models of Rotary Table. Vice is counter drilled in a manner that it can fit to both 3 as well as 4 Slots Rotary Table. Diameter of Base : 105 mm Jaw Width : 75 mm Jaw Depth: 21 mm Jaw Opening : 40 mm Height : 32 mm.
Horizontal Vertical Rotary Table High Precision Table 4 Slot Rotary Table
Horizontal Vertical Rotary Table High Precision Rotary Table 4-Slot Rotary Table for Milling Machine. 4 inch disc diameter 110mm. 5 inch disc diameter 125mm. 6 inch disc diameter 150mm.

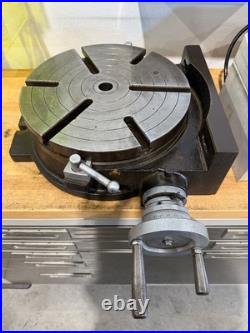

NICE! UNUSED PALMGREN 34105 10in VERTICAL / HORIZONTAL ROTARY TABLE
UNUSED PALMGREN 34105 10in VERTICAL / HORIZONTAL ROTARY TABLE. Item will only include what is shown in the photos. Most of our items are used and may show signs of wear and/or need calibration; we test the basic functional features of our items and describe the physical condition to the best of our knowledge. Rotary Table, Table Dia. 10 in, Base Length 12 in, Base Width 9 11/16 in. Most of our item are used and may show signs of wear and/or need calibration, we test the basic functional features of our items and describe the physical condition to the best of our knowledge. We clearly list these items as not being tested, damaged or for parts only. All AS-IS sales are final. Electronic and electrical devices come with a working condition guarantee unless it is described as not working or for parts only. You must use a licensed contractor for installation. Fail to use a licenced electrician or technician will void any warranties. Please note that exchanges are not always available for every item we sell. All Items must be paid at the same time for the same invoice. All items should have the same address. Please look at the table below to get a better estimate. Crating and Special Packing Requirements. Please keep all the elements of the package together as you received it and take clear pictures of the damage. Listing and template services provided by inkFrog.
Horizontal Vertical HV6 Rotary Table 4 slot & M8 Clamp Kits-Milling Tool-USA
Horizontal Vertical HV6 Rotary Table 4 slot & M8 Clamp Kits-Milling Machine Tools. Worm- Gear Ratio- 1:90, which means that the 1 handle rotation shall turn the table by 4 Degrees. 2 Oiling Points for a direct lubrication of the Table for longer life & better performance. Rotary Table Diameter :150 mm (6″) Overall Height : 80 mm (3-1/4″) Center Height in Vertical Position: 105 mm. Table Graduated 360 Degrees, Re-settable Dial & Hand-wheel graduated in seconds. Vernier scale is calibrated to 10 seconds. Centre Bore of the Table: 2 MT. Can be clamped in Horizontal as well Vertical Position. Set includes a M8 Clamp Kit This will fit both the Horizontal & Tilting model of HV4 & HV6 Rotary Tables This Set includes Following: 2 x step blocks 2 x tee bolts with flanged nut 2 x clamps Bolt Thread M8.
Rotary Table horizontal Vertical Tilting all in hand operated for Hobbyists
Gear Ratio – 36:1, which basically means that the 1 rotation of the handle shall rotate the table by 10 degrees. Table scale is calibrated in 5 degree increment. Can be used in any angle position from 0 to 90 degree. These rotary tables are having 4 slots on table for maximum flexibility. It features a tilting design that allows it to be positioned at an angle of your choice, making it incredibly versatile. The table has a 360-degree range.
HV 4 (100 mm) Regular Milling Indexing Horizontal Vertical Rotary Table with
A rotary table is a precision work positioning device used in metalworking. It enables the operator to drill or cut work at exact intervals around a fixed (usually horizontal or vertical) axis. A round vise is used for securely holding round or cylindrical workpieces during machining, drilling, grinding, or inspection processes. Its design allows for stable and precise positioning, facilitating accurate and consistent operations on the workpiece. 4 (100 mm) Rotary Table. 360-Degree Graduation: The table is graduated a full 360 degrees, allowing for precise control and positioning of the workpiece. The clear markings ensure easy and accurate angle setting for all your milling tasks. Worm Gear Ratio: 1:36 The gear ratio means that one full rotation of the handle turns the table by 10 degrees, providing fine control over the movement and ensuring precision in every operation. Vertical Position Center Height: 2-1/16 (50 mm approx) The center height in the vertical position is 2-1/16 inches, which aligns perfectly with the smaller milling machine setups, offering versatility in workpiece positioning. Handwheel Graduations: The handwheel is graduated in divisions of 10 minutes, allowing for highly detailed adjustments. The scale can also be set to zero, making it easy to track and repeat your adjustments for consistent results. Mounting Flexibility: The Regular model can be mounted in both horizontal and vertical positions, enhancing its versatility for a wide range of applications. Whether you need flat or angled cuts, this rotary table can handle it with ease. Made form Quality close grain Caste Iron -Designed to fit our 3″ (75 mm) & 4″(100 mm) Rotary Tables. Diameter of Base : 80 mm Jaw Width : 54 mm Jaw Depth: 20 mm Jaw Opening : 32 mm Height : 29 mm. These vices are counter- drilled in a manner that these can fit to a 3 as well 4 slot table. The moving jaw has V-grooves to hold Round objects. Precisely Ground on Base, Top, Jaws & Base. Rest Body is painted for a long rust free life. 100 mm Diameter Caste Iron Round Vise vice -Made from Close grain Caste Iron. Designed to fit our 4 (100 mm) Regular & tilting models of Rotary Table. Vice is counter drilled in a manner that it can fit to both 3 as well as 4 Slots Rotary Table. Diameter of Base : 105 mm Jaw Width : 75 mm Jaw Depth: 21 mm Jaw Opening : 40 mm Height : 32 mm.
4/100mm Rotary Table Horizontal Vertical with Suitable Round Vice & Clamp Kit-USA
Milling Indexing 4/100 mm Rotary Table Horizontal Vertical with Suitable Round Vices & Clamp Kits. A rotary table is a precision tool used predominantly in metalworking, particularly in machining operations like milling and drilling. Its primary function lies in enabling machining at precise angular intervals around a fixed point, commonly referred to as indexing. This capability facilitates the creation of intricate geometries, circular features, and multi-sided machining without the need for manual repositioning of the workpiece. By mounting the workpiece on the rotary table and rotating it, machinists can execute complex operations such as gear cutting, spiral grooving, and helical cuts with high precision. Additionally, rotary tables are essential for tasks requiring circular or arc-shaped machining, offering versatility and efficiency in manufacturing processes. 4// 100 mm Rotary Table. Dual functionality: Can be used horizontally or vertically to accommodate a wide range of machining tasks. Generous 4 inch (100 mm) diameter provides ample space for various workpieces. Smooth rotary motion ensures precise positioning and milling operations. Sturdy construction for durability and long-lasting performance. Compatible with both horizontal and vertical milling machines, enhancing flexibility in your workshop. Precision-machined for exceptional accuracy, delivering reliable results with every use. 3// 80 Round vice. Made of high grade close grain caste Iron. Fits our 3 (75 mm) Rotary Tables perfectly. These vices are drilled in a manner that these can fit to a 3 as well 4 slot table. Diameter of Base : 80 mm Jaw Width : 54 mm Jaw Depth: 20 mm Jaw Opening : 32 mm Height : 29 mm. 4// 100 mm Round vice. Diameter of Base : 100 mm Jaw Width : 79 mm Jaw Depth: 20.5 mm Jaw Opening : 40 mm Height : 33 mm.
Rotary Table 6(150 mm) 4-Slot Horizontal Vertical Dividing Plates for Milling M
Experience Precision and Versatility with the Rotary Table 6(150 mm)_4-Slot Horizontal Vertical Dividing Plates! Upgrade your milling machine capabilities with the Rotary Table 6(150 mm)_4-Slot Horizontal Vertical Dividing Plates. This powerful accessory is designed to enhance your precision and productivity, allowing you to perform a wide range of milling operations with ease. Vertical & Horizontal Design. Plate’B’ – 21, 23, 27, 29, 31, 33. Model: 6 inch Rotary Table. Plate’C’ – 37, 39, 41, 43, 47, 49. Setting Position: Horizontal / Vertical. Item Dimensions: 9.5 x 3.1 x 7.7 inch / 24.2 x 8.1 x 19.8 cm. Table Dimension: 6 inch / 150 mm. Plate’A’ – 15, 16, 17, 18, 19, 20. T-slot Diameter: 1/2 inch / 14 mm. Item Weight: 40 lbs / 18.18 kg. Specifications: – Length: 33.8 in, Width: 28.2 in, Height: 17.2 in.
US SHIP? HV-4 Rotary Table 110mm Horizontal Vertical Milling Rotary Table 3 Slot
SHIPEED FROM US WAREHOUSE. RATTMMOTOR HV-4 Rotary Table 110mm Horizontal Vertical Milling Rotary Table 3 Slot, MT2 Indexing Dividing Head for CNC Router Engraver Milling Machine. HV4 HORIZONTAL VERTICAL MILLING ROTARY TABLE 110MM. HV series horizontal and vertical indexing disc (rotary table) is one of the main accessories of milling machine, which can be used on the milling machine for indexing drilling or milling, circumferential cutting, boring, countersinking and other work. The table has a 360° graduated line with a 1′ scale ring and a 10′ vernier ring with a minimum differentiation value. The rotary table has a brake and indexing worm gear shedding mechanism. Indexing error: 360°error 0.04°. Vertical centre height: 85.5mm. Table centre hole taper: MT2. Width of T-slot of table surface: 12mm. Adjacent angle of table T-slot: 120°. Positioning key width: 12mm. Turbine-worm speed ratio: 1:72. The number of degrees of the table represented by each revolution of the worm gear: 5. Maximum horizontal load: 40kg. Maximum vertical load: 20kg. Vertical and horizontal indexing disc functional parts description. Made of high-strength FC30 cast iron, suitable for milling machine or other special machinery for split cutting use, new spindle locking system, compared with the traditional double-sided subtype, locking stronger, more stable cutting. There are corresponding slots on the dial, the matching T-nut can be directly installed inside the T-slot of the indexing dial and can be used. Functional description on the back of the chuck. The mounting surface of the dial has a locating block, which becomes a protruding shape after mounting, and it is stuck inside the machine slot to prevent swaying from side to side. Clear scale, 360° accurate scale makes precision machining easier. After locking the workpiece will not move, more accurate processing. Accurate positioning, easy to disassemble. Bottom positioning slot design, combined with the operating platform, easy machining. About the product manual.
