Rotary Table 4 Inch/100 mm Horizontal Vertical For Milling Premium Quality
Rotary Table 4 100mm Horizontal Vertical Model Milling Machine 4 Slots. The Metal : High quality 18 Gauge Mild Iron steel with Brass Accents. THIS NEAT LITTLE ROTARY TABLE, WITH A DIAMETER OF 100MM, CAN BE USED FOR A VARIETY OF MILLING, DRILLING AND MARKING OUT OPERATIONS IN THE HOME ENGINEER’S WORKSHOP. THERE ARE FOUR TEE SLOTS FOR SECURING THE WORK, FACES MACHINED AT RIGHT ANGLES FOR HORIZONTAL AND VERTICAL MOUNTING AND 7MM SLOTS FOR SECURING TO THE MACHINE TABLE. THE INDEXING HANDLE, WHICH ROTATES ONCE FOR EVERY TEN DEGREES OF TABLE ROTATION, IS SUBDIVIDED IN DEGREES AND QUARTER DEGREES. THE CENTRE HEIGHT WHEN MOUNTED VERTICALLY IS 40MM. SUPPLIED WITH WORK CLAMPING KIT. VERTICAL AND HORIZONTAL MOUNTING TEE SLOTS FOR SECURING WORK WHEEL MARKED IN DEGREES AND QUARTER DEGREES. A Precision work positioning device used in metalworking, enabling the operator to drill or cut work at exact intervals around a fixed axis. Rotary tables are most commonly mounted “flat”, with the table rotating around a vertical axis, in the same plane as the cutter of a vertical milling machine. An alternate setup is to mount the rotary table on its end (or mount it “flat” on a 90° angle plate), so that it rotates about a horizontal axis. In this configuration a tailstock can also be used, thus holding the work piece between centers. Horizontal/Vertical Rotary Tables are extremely useful accessories for a milling machine. Milling curved profiles and angled faces relative to a centre line. Drilling or milling to polar co-ordinates and, when mounted vertically with a tailstock they can be used to machine shafts or spindles. The versatile units can also be used on drilling, boring or slotting machines permitting an even greater range of operations. Machining – To establish the initial work piece position simply loosen the zero Collar locking handle and rotate the zero collar anti-clockwise for about half A turn. The worm is now disconnected from the worm wheel drive, the table is Free to turn independently to the crank handle and the work piece may now be Accurately aligned. To re-engage simply turn the zero collar in the clockwise Direction and re-tighten the locking handle. To machine spanner flats on a bolt. To drill equidistant holes on a circular flange. To cut a round piece with a protruding tang. To create large-diameter holes, via milling in a circular tool path, on small milling machines that don’t have the power to drive large twist drills (>0.500/>13 mm). To cut complex curves (with proper setup). To cut straight lines at any angle. The holiday season is the busiest shopping period of the year, don? Our catalog covers every festival including Thanksgiving, Black Friday, Cyber Monday, Christmas. Please do visit our store and get yourself a treat.
3 Inches (75Mm) 4 Slots Horizontal and Vertical (H/V) Rotary Table with 65Mm 3

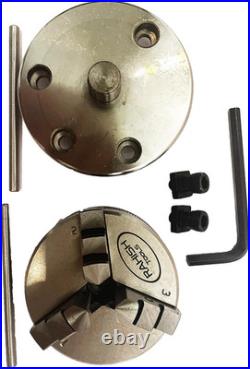

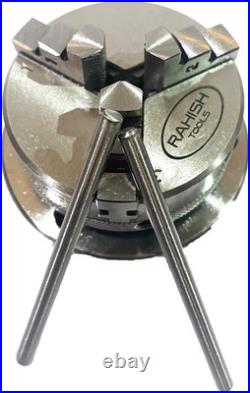

3 Inches (75Mm) 4 Slots Horizontal and Vertical (H/V) Rotary Table with 65Mm 3 Jaws Self Centering Chuck with Back Plate and T-Nuts for Milling Engineering Tools. A great combo of 3/80 mm Rotary table with 65 mm self centering chuck with back plates & Tnuts- A perfect milling combo for smaller mills. Quality Low Profile Rotary Table diameter 80 mm (3Inches). 3inches rotary Table: 1. Table is graduated 360 Degrees. Worm Gear Ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 Degrees. Center Height in vertical position without chuck: 2-5/8 (66 mm approx) 4. Hand wheel is graduated in divisions of 10 min & can be set to zero. 65mm 3 Jaws Self Centering Chuck: 1. 65 mm 3 Jaws Self Centering Chuck M14 x 1 mounting Thread 2. Back Plate also has M14 x 1 thread Spigot to mount the Chuck on it. Back Plate is drilled in a manner that it can be fitted ONLY to 4 Slot Rotary Table. Suitable T -nuts are also supplied. Alloy Steel, Cast Iron. Drilling Machine, Lathe, Milling Machine. 9.8 x 6.42 x 4.06 inches. We reserve the right to cancel any order for any reason at any time. We are not responsible for undeliverable addresses. Your feedback very important to us, after you get your package and you are. Satisfied with our service. If you have any problem with your order / any questions please before leave any type of feedback. Thank you for shopping at our store.
Double Bolt Tailstock Adjustable Suitable For Rotary Table Hv4 & Hv6
The Double Bolt Tailstock Adjustable is a versatile and durable accessory designed for use with rotary tables HV4 and HV6. With a maximum centre height of 105mm and a base dimension of 135mm x 90mm, this tailstock allows for precise and reliable machining. The adjustable setting position, whether horizontal or vertical, makes it suitable for a wide range of applications. Manufactured in India, this product ensures quality and compatibility with your rotary table setup. It’s like never been used.
