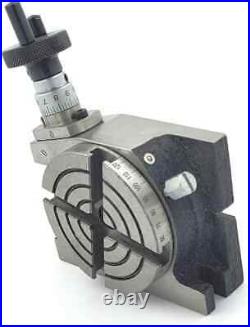

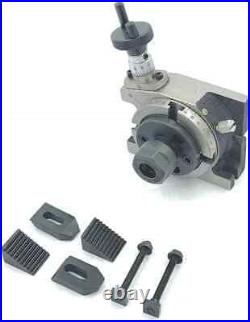

4”/100mm Regular Rotary Milling Table ER Collet Adaptor with M6 Clamp Kit- USA
4”/100mm Regular Rotary Milling Table ER Collet Adaptor with M6 Clamp Kit. A rotary table is a precision tool used predominantly in metalworking, particularly in machining operations like milling and drilling. Its primary function lies in enabling machining at precise angular intervals around a fixed point, commonly referred to as indexing. This capability facilitates the creation of intricate geometries, circular features, and multi-sided machining without the need for manual repositioning of the workpiece. A clamp kit for a rotary table is used to secure workpieces onto the rotary table during machining operations. Rotary tables are often used in machining setups to enable circular cutting, hole drilling, and other operations around a fixed axis of rotation. 360-Degree Graduation: The table is graduated a full 360 degrees, allowing for precise control and positioning of the workpiece. The clear markings ensure easy and accurate angle setting for all your milling tasks. Worm Gear Ratio: 1:36 The gear ratio means that one full rotation of the handle turns the table by 10 degrees, providing fine control over the movement and ensuring precision in every operation. Vertical Position Center Height: 2-1/16 (50 mm approx) The center height in the vertical position is 2-1/16 inches, which aligns perfectly with the smaller milling machine setups, offering versatility in workpiece positioning. Handwheel Graduations: The handwheel is graduated in divisions of 10 minutes, allowing for highly detailed adjustments. The scale can also be set to zero, making it easy to track and repeat your adjustments for consistent results. Mounting Flexibility: The Regular model can be mounted in both horizontal and vertical positions, enhancing its versatility for a wide range of applications. Whether you need flat or angled cuts, this rotary table can handle it with ease. This M6 clamp kit is designed for use with 3″ or 4″ rotary tables. Includes a set of clamps, bolts, nuts, and T-slot nuts. Compatible with rotary tables featuring M6 T-slots or mounting holes. Allows for secure fastening of workpieces onto the rotary table during machining operations. Made of tool steel for durability and reliability. Provides essential holding power to maintain precision and accuracy. Ideal for use in machining setups requiring precise rotary table positioning. ER COLLET ADAPTOR. ER Collet adaptor designed for small milling rotary tables. Offers exceptional accuracy of under 5 microns. Compatible with 3″ (80 mm) and 4″ (100 mm) rotary tables. Includes fixing T nuts for secure attachment. Epoxy black finish provides rust resistance and durability. Base plate fits both 3-slot and 4-slot rotary tables seamlessly. Features a 13.9 mm diameter locating spigot for precise centering.
ADI Small HV 3 Inch II 80 mm Rotary Milling Indexing Table with Clamp Kit- USA
Small HV 3 Inch II 80 mm Rotary Milling Indexing Table with Clamp Kit. A rotary table is a precision work positioning device used in metalworking. It enables the operator to drill or cut work at exact intervals around a fixed (usually horizontal or vertical) axis. A clamp kit for a rotary table is used to secure workpieces onto the rotary table during machining operations. Rotary tables are often used in machining setups to enable circular cutting, hole drilling, and other operations around a fixed axis of rotation. Compact & Low-Profile Design. Table Diameter: The rotary table features a 3-inch (80 mm) diameter, making it perfect for small-scale milling operations where space and precision are critical. Vertical Height: With a vertical height of just 1-5/8 inches, this rotary table maintains a low profile, enabling it to fit seamlessly into your existing setup while maximizing available workspace. Gear Ratio: The rotary table boasts a 36:1 gear ratio, ensuring precise control over the rotation. One full rotation of the handle results in a 10-degree rotation of the table, allowing for meticulous adjustments during milling tasks. Scale Calibration: The table scale is finely calibrated in 5-degree increments, providing clear and accurate angle measurements. This feature is particularly useful for tasks requiring high precision and consistency. Horizontal & Vertical Use: This rotary table is designed for maximum versatility, capable of operating in both horizontal and vertical positions. This dual functionality allows for a wide range of applications, from simple flat milling to more complex angular cuts. Base Dimensions: The base of the rotary table measures 4-1/8″ x 3-1/4″, providing a stable and secure platform for your work. The compact dimensions ensure that the table remains sturdy during use, minimizing vibrations and enhancing accuracy. T-Slots: The base is equipped with four 5/16 T-slots, allowing for secure clamping of workpieces. These slots are designed to accommodate various clamping setups, ensuring your workpiece remains firmly in place throughout the milling process. This M6 clamp kit is designed for use with 3″ or 4″ rotary tables. Includes a set of clamps, bolts, nuts, and T-slot nuts. Compatible with rotary tables featuring M6 T-slots or mounting holes. Allows for secure fastening of workpieces onto the rotary table during machining operations. Made of tool steel for durability and reliability. Provides essential holding power to maintain precision and accuracy. Ideal for use in machining setups requiring precise rotary table positioning.
3/80 mm Regular Rotary Milling Table ER Collet Adaptor with M6 Clamp Kit- USA
3/80 mm Regular Rotary Milling Table ER Collet Adaptor with M6 Clamp Kit. A rotary table is a precision tool used in machining operations, primarily for rotating a workpiece around a fixed axis, allowing for the accurate machining of circular features, angular positioning, and dividing work into equal sections. 3 (80 MM) Rotary Table 4 Slots. Table Height: 1 5/8. Center Height in Vertical Position: 1. Operates in the Horizontal or Vertical position. Hand Wheel calibrated to 10 degrees per revolution with 1/4 degree increment graduations. Table scale graduated in 5 degree increments. M6 CLAMP KIT. Made of high quality tool steel. These are polished & ground from all sides. Sets includes 2 clamps, 2 blocks, screw of m6 thread with 2 flange nuts & 2 tee-nuts. ER COLLET ADAPTOR. ER Collet adaptor designed for small milling rotary tables. Offers exceptional accuracy of under 5 microns. Compatible with 3″ (80 mm) and 4″ (100 mm) rotary tables. Includes fixing T nuts for secure attachment. Epoxy black finish provides rust resistance and durability. Base plate fits both 3-slot and 4-slot rotary tables seamlessly. Features a 13.9 mm diameter locating spigot for precise centering.
4 Inch Rotary Table 4 Slot for Milling Machine with M6 clamp kit- (USA)
4 Inch Rotary Table 4 Slot for Milling Machine with M6 clamp kit. The 4 Inch Rotary Table with 4 Slots is an essential accessory for milling machines, designed to provide precision and versatility in various machining tasks. Paired with the M6 clamp kit, this rotary table allows for accurate and secure workpiece positioning, making it an indispensable tool for both professional machinists and hobbyists. The rotary table is crafted with high precision to ensure smooth rotation and accurate positioning. It features a 360-degree scale around its circumference and a vernier scale for precise angle adjustments. Made from high-quality cast iron or steel, the rotary table is built to withstand the rigors of heavy-duty machining. Its robust construction ensures long-lasting performance and stability. The table features four T-slots that allow for flexible and secure clamping of workpieces. These slots accommodate a variety of clamping configurations, enhancing the versatility of the table. Equipped with a worm gear drive mechanism, the rotary table offers smooth and controlled rotation. The gear mechanism is designed to provide consistent and precise movements, essential for intricate machining tasks. The included M6 clamp kit provides all the necessary components to securely hold workpieces in place. The kit includes clamps, T-nuts, studs, and step blocks, ensuring reliable and stable clamping. Ideal for a range of machining operations, including drilling, milling, and circular cutting. The rotary table is suitable for use in both horizontal and vertical positions, increasing its application range. Perfect for milling precise slots, grooves, and circular patterns. The rotary table allows for intricate and complex milling tasks with high accuracy. Enables accurate drilling of multiple holes at precise angles and intervals. Ideal for tasks requiring exact hole positioning. Circular Cutting and Engraving. Suitable for cutting and engraving circular patterns and arcs. The table provides the control needed for detailed and precise work. Allows for the precise indexing of workpieces, making it easier to perform repetitive machining tasks with consistent accuracy. Enhanced Precision : Achieve highly accurate machining with the rotary table’s precision scales and smooth rotation. Increased Versatility : The 4-slot design and M6 clamp kit provide flexible clamping options for various workpiece shapes and sizes. Durability : Robust construction ensures long-lasting performance even under demanding machining conditions. Ease of Use : The rotary table and clamp kit are designed for easy setup and operation, reducing setup time and increasing productivity. To maintain the performance and longevity of the 4 Inch Rotary Table with 4 Slots and M6 Clamp Kit. Regular Cleaning : Keep the table and clamping components clean to prevent debris buildup and ensure smooth operation. Lubrication : Apply appropriate lubrication to the worm gear mechanism and moving parts to maintain smooth rotation. Inspection : Periodically inspect the table and clamp kit for signs of wear or damage. Replace any worn or damaged components as needed.
6 (150 mm) Precision HV6 Rotary Table with M8 Clamp Kit- USA FULFILLED
HV6 ROTARY TABLE. M8 Clamp Kit Set (8mm) Suitable for HV4/HV6 Rotary table. M8 CLAMP KIT. Epoxy Black Finish for a Rust Free Life. We have this rotary table in 3 & 4 slot. Manufactured from High grade seasoned casting and powder coated wrinkled finish for smooth looks.
HV MILLING 4/ 100 ROTARY TABLE With SMALL CHUCK, BACK PLATE & M6 CLAMP KIT- USA
Brand New Very High Quality 4 /100 mm Regular Rotary Table designed for smaller milling machines. Table is graduated 360 Degrees. Worm Gear Ratio -1:36 means that the 1-handle rotation shall turn the table by 10 Degrees. Center Height in vertical position: 2-1/16 (50 mm approx) Hand wheel is graduated in divisions of 10 min & can be set to zero. Can be mounted both in Horizontal & vertical positions. 65 MM 3 JAW SELF-CENTERING CHUCK. Brand New, High Precision- Superb Quality! 65 mm 3 Jaws Self Centering Chuck M14 x 1 mounting Thread. Back Plate also has M14 x 1 thread Spigot to mount the Chuck on it. Back Plate is drilled in a manner that it can be fitted ONLY to 4 Slot Rotary Table. Suitable T -nuts are also supplied. 70 MM 4 JAW INDEPENDENT CHUCK. 70 mm 4 Jaws Self Centering Chuck with Back Plate & Fixing- Suitable to Mount on 3″ (75 mm) & 4″ (100 mm) Rotary Table -4 Slots Tables. Designed to fit our 3 or 4 Rotary table 4 slots. The chuck mounting is standard Uni-mat Thread M14 x 1. M6 Clamp kit -Suits to 3″ & 4″ Rotary Table. This will fit both the Horizontal & Tilting model of our 3″ (75 mm) & 4″ (100 mm) Rotary – 4 Slots Table. This Set includes Following: 2 x step blocks 2 x tee bolts with flanged nut 2 x clamps Bolt length: 55 mm overall & Bolt Thread M6. Vices & Work Holding. Measuring Tools & Equipments. Jewellery & Watch Making&########x9. Do It Yourself (DIY Tools)&########x9. HSS Cutting & Finishing Tools. HV MILLING 4/ 100 ROTARY TABLE W/ SMALL CHUCK, BACK PLATE & M6 CLAMP KIT- USA. You will be glad to know that our tools are being manufactured in our own production facility in New Delhi (India) and are being inspected to ensure that they meet the required International quality benchmark as well as the expectations of our customers. We hold the Inventory of our good sellers in the USA & UK to offer the quickest possible deliveries to our customers. Pls note:- 1/. It is important to note that after the pandemic, although the logistic services have been improved a lot. However, they are still to reach their original positions. We expect our customers to understand and support us in such issues which are unforeseen and not in our control. However, we take complete onus and responsibility of supplying you with a completely brand-new product without any manufacturing or transit damage. Though we packed our goods with utmost care and strong packaging material, since our products are heavy, there could be transit damage in a few cases. However, it has been seen that such issues are not always a problem and our customers could still use them. In the majority of the cases, we have experienced that we manage to resolve the issue amicably without any trouble. So a discussion is the best way of a desired resolution. SEE OUR OTHER ITEMS FOR SALE. 80 mm 4 Jaws Independent Dog chuck with Back Plate & T nuts – (USA FULFILLED). 3 Pieces Spring Caliper Set – Inside, Outside & Divider 6 inch (USA FULFILLED). KNURLING TOOL PIVOT HEAD DIAMOND METRIC PITCHES PATTERN 1/2 SQ. Assorts Ball Turning Attachment (Exclusive Feature of Bearing Base) ROUND BASE. Single wheel knurling tool holder with 5 spare HSS knurls (USA FULFIILED). 4 (100 MM) ROTARY TABLE WITH 65MM 3 JAWS & 70MM 4 JAWS WITH BACK PLATE & TNUTS. Automatic Center Punch with Replaceable Hardened Steel Tip tool (USA FULFILLED). T-HANDLE TAP WRENCH SET OF 3 PCS SOLID COLLET JAWS – (USA FULFILLED). Supreme die holder with chuck. Single Wheel Straight Linear Knurling Hand Tool 3/4″ x 3/4″ x 5 (USA FULFILLED). Clamp Type Lathe Knurling Tools II 3/8″ Sq x Long 5-3/4″ Inch Tail (USA FULFILL). 4 regular Rotary Table +70 mm 4 Jaw Chuck+ Back Plate+ Fixing USA FULFILLED. Floating Tailstock Die holder 2MT Shank-Imperial Dies – USA FULFILLED. Spring Loaded Clamp Type Knurling Tool 2″ Capacity 3/8″ Hand Tools USA FULFILLED. HV6-4 Slots Rotary Table & Steel Dividing Plates Set USA FULFILLED. SLITTING/SLOTTING SAW HOLDER WITH CIRCULAR SAW BLADE – USA Fulfilled. New Mini V-Clamp Adjustable Spring Type Knurling Tool. Lathe Tailstock Die Holder – Tapping Threading Reaming Drilling Tools (MT3). Assorts Lathe Tool Ball Turning Attachment Oval Base- Single Bit (USA FULFILLED). Spindle Live Revolving Center, Morse Taper MT4 with Interchangeable Tips. Listing and template services provided by inkFrog.
